Structural Thermoplastic Laminates for the Most Demanding Applications
Toray Advanced Composites is the recognized global leader in the design and production of structural fiber-reinforced thermoplastic laminates for a wide range of advanced composite applications.
Our Toray Cetex® RTL solutions (previously branded as TenCate Cetex®) also known as organo sheets, are available in a wide range of customizable fiber/resin combinations to maximize your application performance. Manufactured in our aerospace-approved and qualified presses, and NDT inspected to guarantee structural integrity, Toray Cetex® is delivered to you as a flat, structural multi-ply sheet, ready for rapid thermoformed parts manufacture.
The functional benefits of our Cetex® RTLs include fiber specifications, ply count, fiber/fabric orientation, embedded lightning strike protection, galvanic corrosion, and integrated color and surface effects.
Explore Our Products
Over a Million Parts in Flight
Learn how Toray Cetex® reinforced thermoplastic laminates are making a difference in structural, semi-structural, and interior aerospace applications in this video.
Casestudy
Airbus A380 Engine Pylon Covers
Nantes, France
The Airbus A380 engine pylon cover is manufactured by Daher (Nantes, France) using Toray Cetex® PPS/carbon laminate.
Why Reinforced Thermoplastic Laminates?
Reinforced thermoplastic laminates from Toray offer a range of processing, design, and performance benefits.
Fast Processing
Toray Cetex® reinforced thermoplastic laminates (RTLs) are orientated to your required specifications, and can be press formed in minutes and overmolded for one-shot processing.
End-User Specifications
We partner with our customers to understand their needs. Toray Cetex® RTLs can be engineered to exact requirements, including fiber selection, orientation, and ply count. Toray consolidate the laminates, resulting in a high-quality material that is ready for part manufacture.
Recyclable
As stewards of the environment, Toray developed its Cetex® thermoplastic RTLs to be recovered for use in alternate parts, allowing 100% utilization of the raw material. Toray actively participates in programs with customers and research groups to develop new recycling techniques and applications.
Excellent FST Properties
The Toray Cetex® portfolio includes resin systems developed to meet the most demanding flame, smoke, and toxicity (FST) standards, enabling manufacturers to design and produce highly structural and durable components while still providing the highest degree of safety for mass transit applications.
Chemical Resistant
Toray's Cetex® thermoplastic advanced composites deliver outstanding moisture and solvent resistance, including fuel and hydraulic fluids, making them the material of choice for a wide range of demanding applications.
Product Formats
.jpg?w=16&h=9)

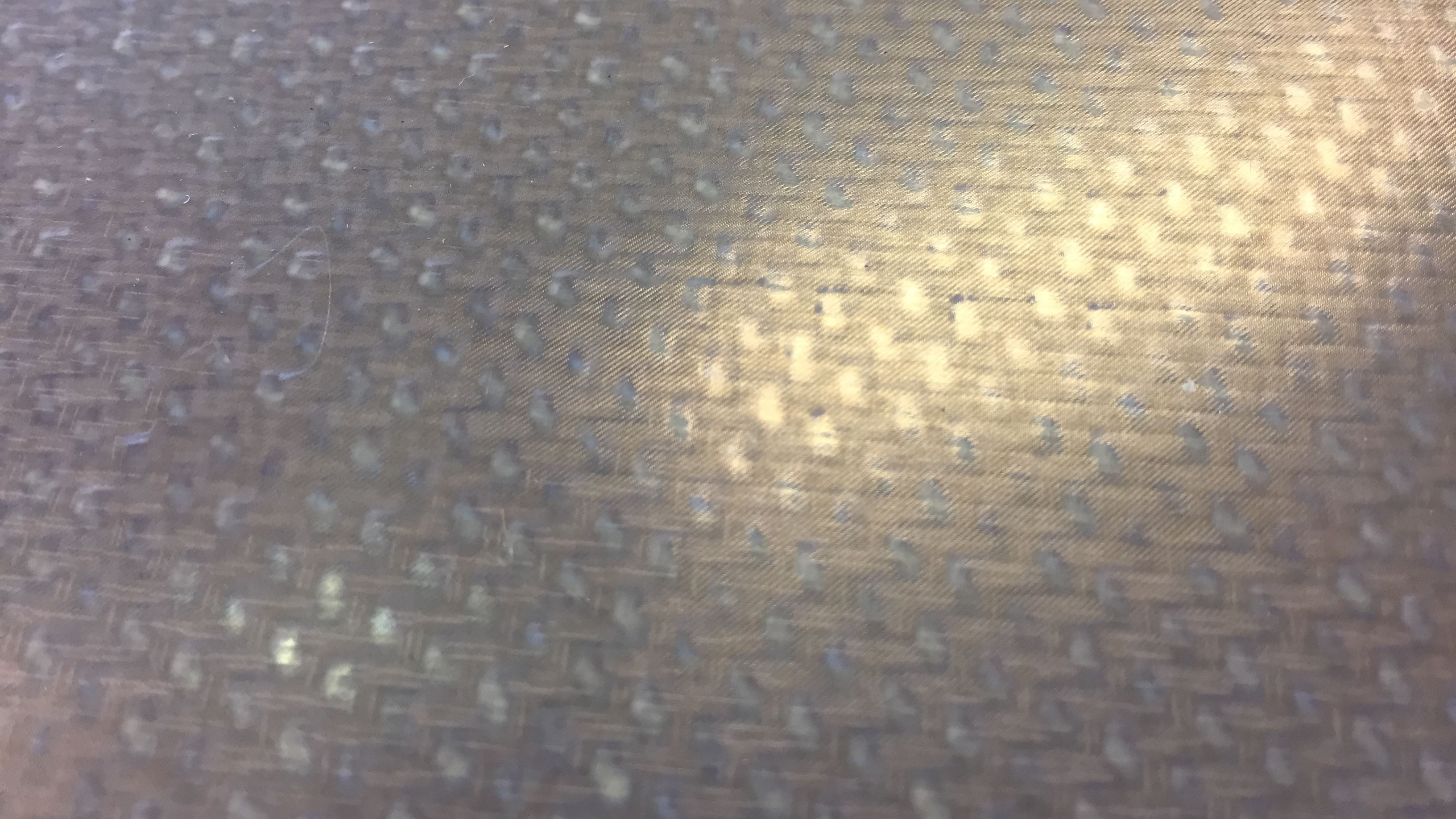

Lightning Strike Integration
Toray Cetex® thermoplastic laminates are offered with an integrated surface fine bronze woven mesh for lightweight lightning strike protection in aircraft structures. This proven construction is qualified and in service on OEM aircraft.
.jpg?w=16&h=9)

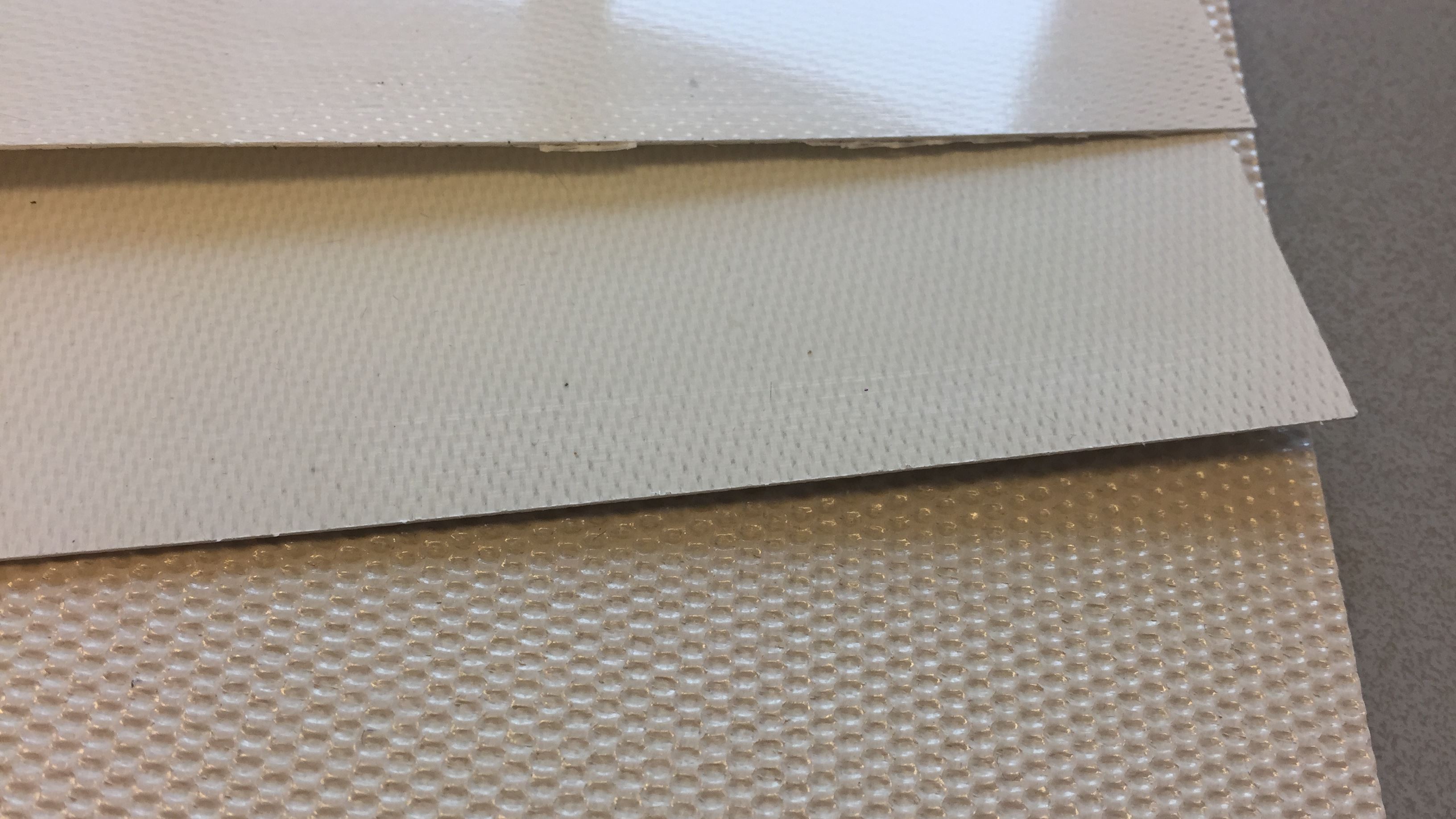

Textures
Optimizing surface appearance is beneficial to esthetic performance and adhesion promotion. Toray Cetex® RTLs are available with a variety surface finishes, from anti-slip to smooth textures.
.jpg?w=16&h=9)

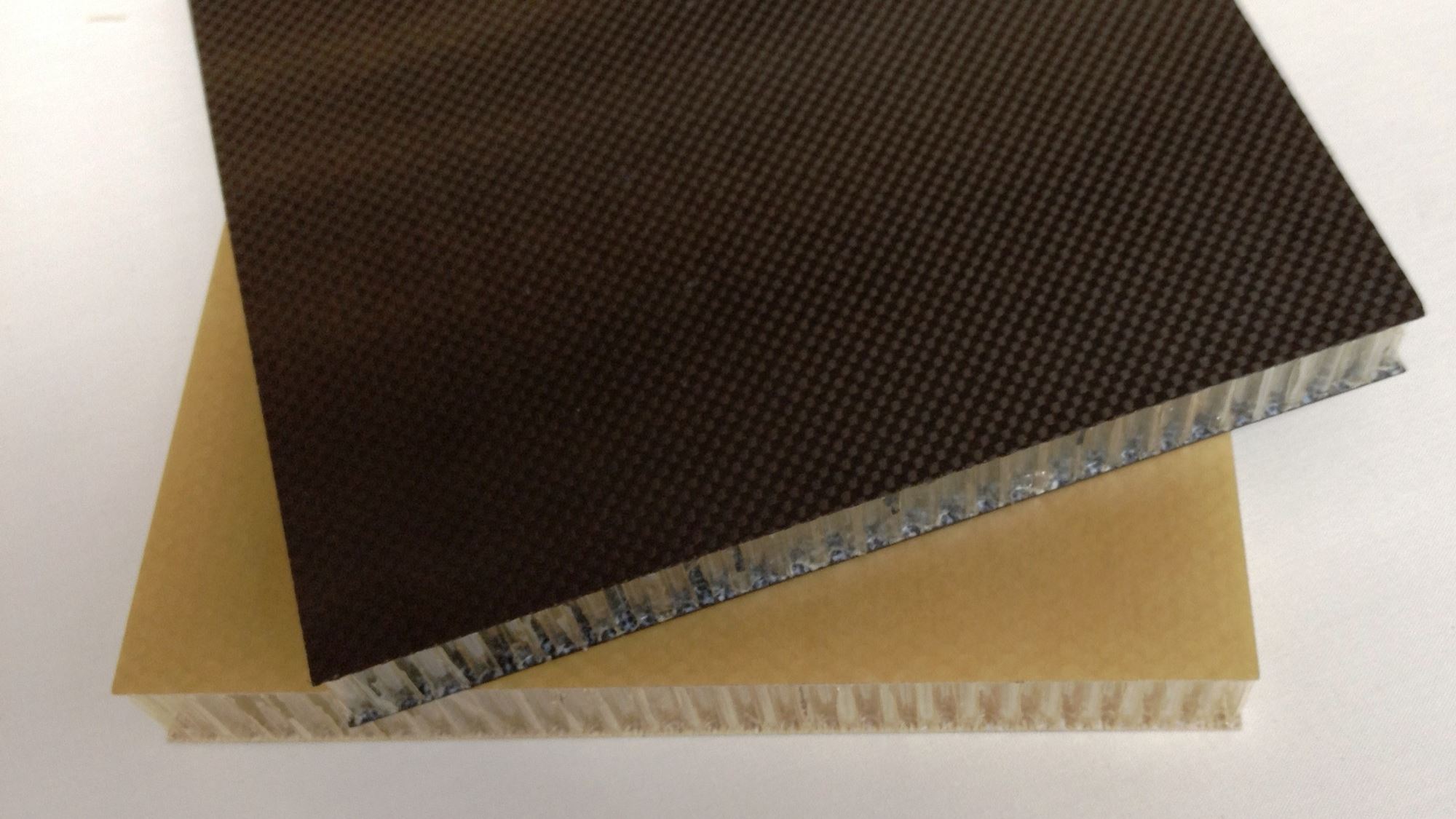

Sandwich Panels
Superior impact performance and moisture resistance make Toray Cetex® thermoplastic laminates the ideal solution for sandwich panels. Paired with outstanding FST performance, Cetex® laminate sandwich panels are well suited for high wear applications such as aircraft and train interiors.
.jpg?w=16&h=9)

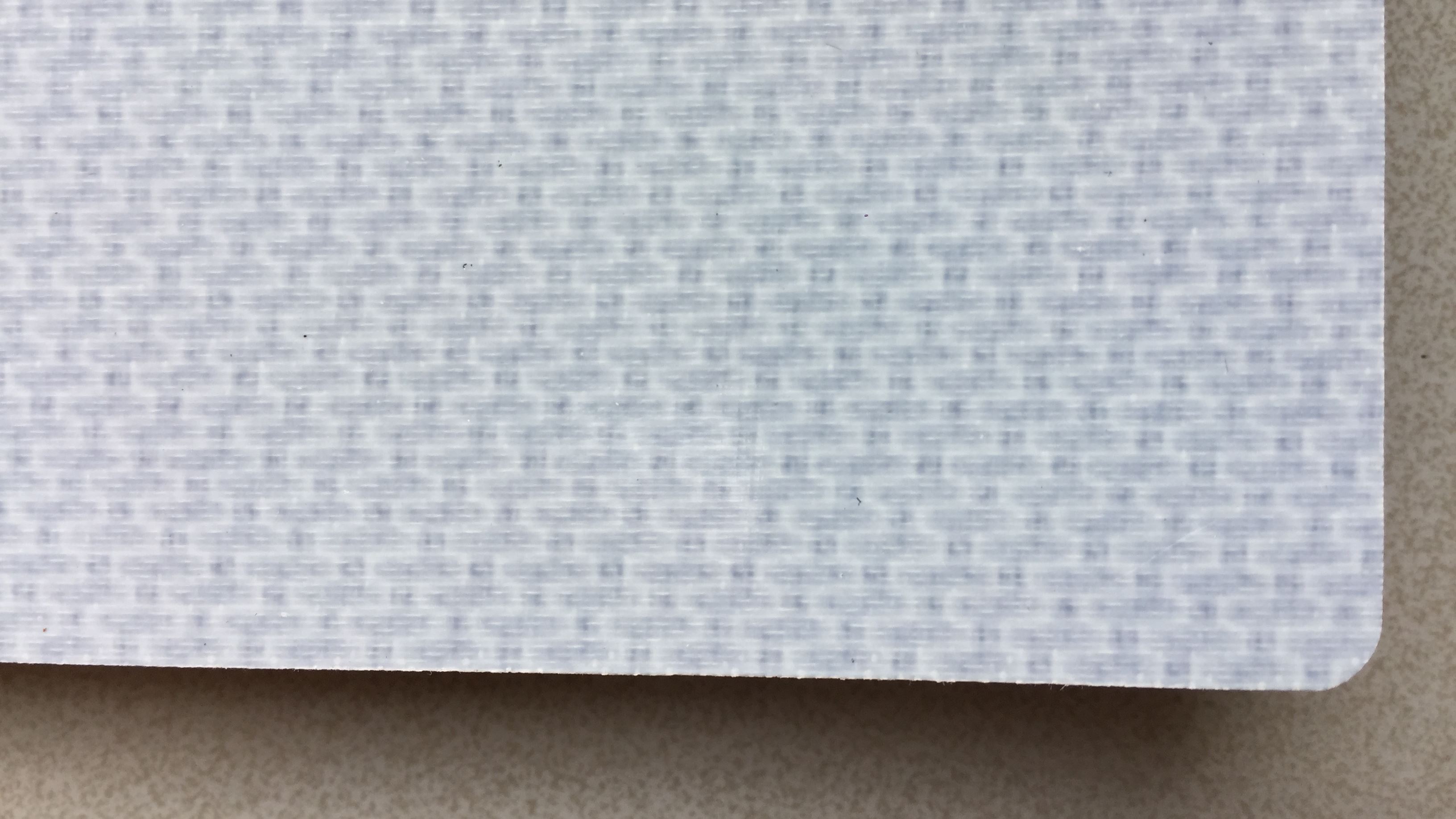

Galvanic Corrosion Prevention
To prevent galvanic corrosion, a barrier layer between metals and carbon-reinforced composites is essential. Toray Cetex® thermoplastic laminates are available with a qualified glass scrim, providing an electrically isolating layer and eliminating the need for secondary processing.
.jpg?w=16&h=9)

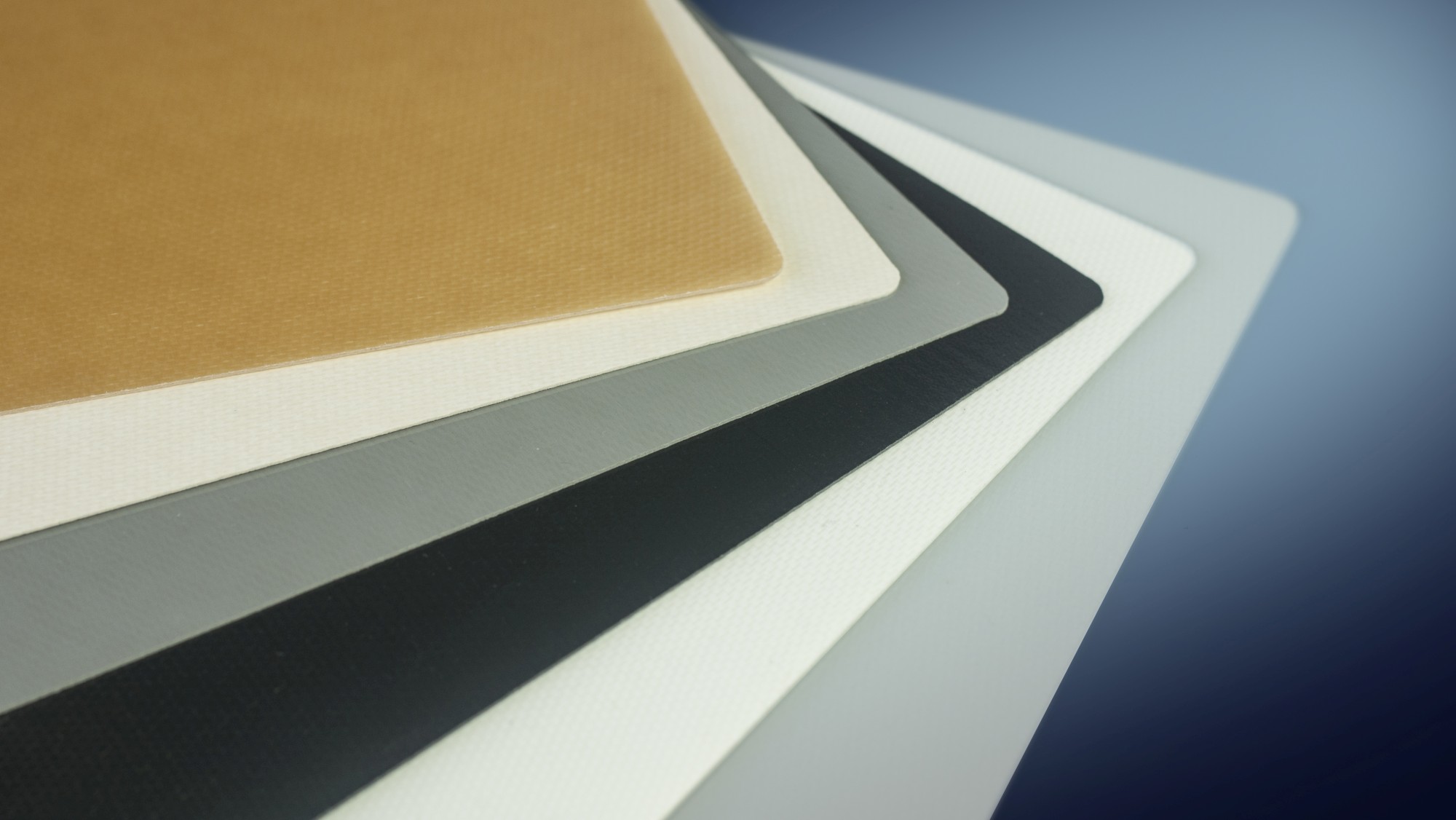

Color Options
Save time and weight. Toray Cetex® can be pigmented to a range of colors to either completely eliminate paint or reduce the volume required to achieve visual quality.
Processing RTLs
Reinforced thermoplastic laminates are ideal for the high-volume manufacture of composite parts due to their rapid processability, and can be easily processed using a range of methods.
Welding
Welding provides a seamless joint between substrates and can be married with overmolding to add functionality and integrate additional parts, making it an ideal alternative to time-consuming and potentially weaker adhesive bonding and mechanical fixation techniques.
Thermoforming
The high-quality consolidation of Cetex® thermoplastic composites in both UD tape and RTL formats allows for simple heating and forming processes that take minutes.
Fast Processing
Toray Cetex® reinforced thermoplastic laminates (RTLs) are orientated to your required specifications, and can be press formed in minutes and overmolded for one-shot processing.
Overmolding
Integrating Cetex® endless fiber reinforced composites in an injection molding process combines the strength of high-end composites with the design freedom and complexity of injection molding parts.
Trimming and Routing
Toray Cetex® RTLs can be cut to shape for secondary processing, most commonly by sawing, milling, or waterjet cutting.
Forming Simulation
Modern-day software accurately predicts forming Toray’s Cetex® laminates, giving a near-to-reality insight in the production process. This makes parts more efficient in geometry and material usage and at the same time shortens time to market. This software also prevents costly bridging and consolidation issues and helps avoid deformations and wrinkles in the fabric.
Processing Guides
Toray Cetex® Engineering Guide for Interiors—Thermoplastic Composites
Toray Cetex® Stamp Forming Processing Guide—Thermoplastic UD Tapes
Toray Guide to Composites—Volume One
Resources
Composites World article - thermoplastic composites a view from Europe
Advanced Composite Selector Guide
Toray Cetex® thermoplastics white paper
